Description

  • Offers Maximum Versatility for Handling Stone and Other High-Density Materials
  • 600 Lbs (270 kg) lifting Capacity
  • Continuous Tilt Duty

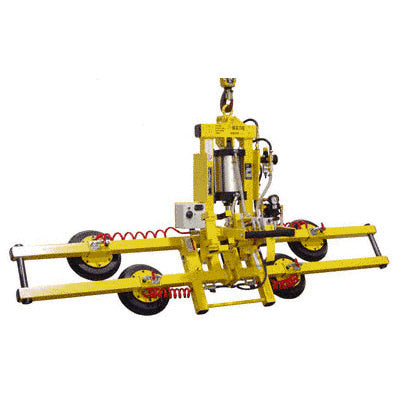

This CRL Wood's Powr-Grip® AC Powered Tilter 600 Series is equipped with powered 90 degree tilt, sliding vacuum pad mounts and individual vacuum pad shutoffs. This economical vacuum lifter offers maximum versatility for handling stone and other high-density materials, including those with rough surfaces or irregular shapes.

Adjustable Vacuum Pad Spread:
Length: Min: 49" (1.24 m) Max: 85-3/4" (2.18 m)
Width: 19" (482 mm)

Number/Size of Vacuum Pads:
4/10" (254 mm) Diameter Lipped Vacuum Pads

Lifting Capacity:
600 lbs. (270 kg)

Weight of Vacuum Lifter:
150 lbs. (68 kg)

Standard Operating Power:
Compressed Air, 8 SCFM [227 liters/min] @ 80 psi [552 kPa]

Tilt Duty:
Continuous

Apply/Release Times:
5 sec./3 sec. (approx.)

Load Movement:
Power tilt, 90 degrees between upright and flat

Time for 90 Degrees Tilt:
10 seconds (approx.)

Tilt Duty:
Continuous

Standard Features:
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Sliding Adjustable Vacuum Pad Mounts
Spring-Mounted Vacuum Pads
Individual Shutoffs to All Vacuum Pads
Closed Cell Foam Vacuum Pad Rings
Blow-off for Quick Release

Alternate Power Systems:
AC power System (Cat. No. PT4HV11ACS)
DC power System (Cat. No. PT4HV11DCS)

Available Options:
Vacuum Loss Warning Buzzer (Cat. No. E03VLW)
Voltage Adaptation (Cat. No. E06VA)
