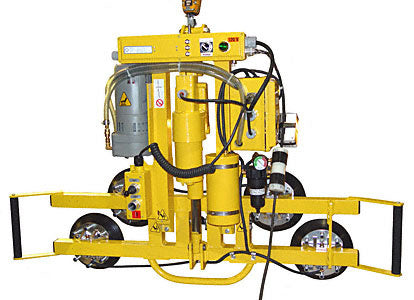

CRL Wood's Powr-Grip® Windshield Power Tilter *DISCONTINUED*
Roll over image to zoom in Click on image to zoom
CRL Wood's Powr-Grip® Windshield Power Tilter *DISCONTINUED*

CRL Wood's Powr-Grip® Windshield Power Tilter *DISCONTINUED*

CRLSKU: PT410AC
Price:
$32,153.98
 More payment options

Description

  • Load Movement: Power Tilt, 90 Degrees Between Upright and Flat
  • 500 Lbs. (225 kg) Lifting Capacity
  • Operates on 120V AC, 60 Hz, 10 AMP
Concave vacuum pads swivel to accommodate windshields and other curved materials in this CRL Wood's Powr-Grip® Windshield Power Tilter, originally designed for lifting bullet-proof glass.

Standard Pad Spread: 17" x 45-1/2" (433 x 1157 mm)

Number/Size of Pads: 4/10" (254 mm) Diameter

Lifting Capacity: 500 Lbs. (227 kg)

Unit Weight: 154 Lbs. (70 kg)

Standard Operating Power: 120V AC, 60 Hz, 10 AMP

Apply: Four sec. Release: Four sec. (approx.)

Load Movement: Power tilt, 90 degrees between upright and flat.

Time for 90 Degree Tilt: Seven seconds

Tilt Duty: 81 Tilts Per Hour

Standard Features:
Removable Control Pendant
Green Lift Light
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-lock Electrical Plug
Blow-off for Quick Release

Available Options:
  • Vacuum Loss Warning Buzzer CAT. NO. E03VLW
  • Individual Pad Shutoffs CAT. NO. CM1C0WB
  • Voltage Adaptation CAT. NO. E06VA
