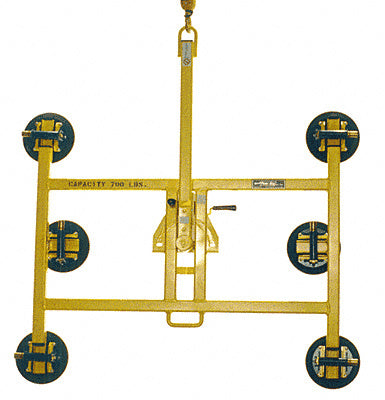

CRL Wood's Powr-Grip® Rotate and Tilt Hand Cup Frame - Horizontal Configuration *DISCONTINUED*
Roll over image to zoom in Click on image to zoom
CRL Wood's Powr-Grip® Rotate and Tilt Hand Cup Frame - Horizontal Configuration *DISCONTINUED*

CRL Wood's Powr-Grip® Rotate and Tilt Hand Cup Frame - Horizontal Configuration *DISCONTINUED*

CRLSKU: HFH6000
Price:
$5,217.98
 More payment options

Description

  • Six 9" (229 mm) Diameter Vacuum Cups
  • 700 Lbs. (320 kg) Lifting Capacity
  • Load Movement: Manual Rotation 180 Degree Edgewise with Locking in Three Positions Manual Tilt, 90 Degrees Between Upright and Flat, with Automatic Latching in Upright Position
This CRL Wood's Powr-Grip® Rotate and Tilt Hand Cup Frame - Horizontal Configuration provides an inexpensive way to put six Powr-Grip® hand-held 9" (229 mm) Vacuum Cups (Cat. No. W5450, sold separately) to work on a crane, hoist or forklift.

Standard Pad Spread (to outside edge of cups):
46" x 57" (1.17 x 1.45 m)

Number/Size of Cups: 6/9" (229 mm) Diameter

Lifting Capacity: 700 Lbs. (317 kg)

Unit Weight: 75 Lbs. (34 kg)

Load Movement: Manual rotation, 180 degree edgewise with locking in three positions. Manual tilt, 90 degrees between upright and flat, with automatic latching in upright position.

Units: Available in Horizontal Configuration (HFH) or in Vertical Configuration (HFV).

Standard Features: Bolt-on Hand Cup Mounts.

Available Options:
  • C-frame Lift Bar CAT. NO. LB3CFL
  • Special Sizes and Capacities Upon Request
  • With Wood's Powr-Grip® Hand-Held Vacuum Cups (Cat. No. W5450, sold separately).

    Product Warning:

    NOTE: This Vacuum Lifter provides an inexpensive way to put Powr-Grips® Hand-Held Vacuum Cups to work on a
    crane, hoist or forklift. Units can be tilted ONLY when the lift bar is locked in the center position, as shown in photos. Uses 9" (227 mm) W5450 Vacuum Cups. Use only where cups can be monitored and re-pumped if necessary.

    Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
