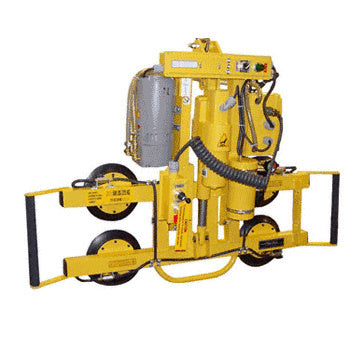

CRL Wood's Powr-Grip® Power Tilter 500 Series *DISCONTINUED*
Roll over image to zoom in Click on image to zoom
CRL Wood's Powr-Grip® Power Tilter 500 Series *DISCONTINUED*

CRL Wood's Powr-Grip® Power Tilter 500 Series *DISCONTINUED*

CRLSKU: PT49ACS
Price:
$28,787.98
 More payment options

Description

  • Provides Effortless Power Tilting and Optimal Support
  • 500 Lbs. (225 kg) Lifting Capacity
  • Operates on 110 Volts AC
CRL Wood's Powr-Grip® Power Tilter 500 Series has fast apply and release times and effortless power tilt. This vacuum lifter is ideal for transferring glass or other non-porous materials between vertical storage and horizontal production machinery, as well as many other applications.

Standard Vacuum Pad Spread: 20-1/2" x 37-1/2" (521 x 953 mm)

Number/Size of Vacuum Pads: 4/9" (229 mm) Diameter Vacuum Pads

Lifting Capacity: 500 Lbs. (227 kg) on smooth non-porous surfaces

Weight of Vacuum Lifter: 168 Lbs. (76 kg)

Standard Operating Power: 120V AC, 60 Hz, 10 Amp

Apply: 1 sec. Release: 1 sec. (approx.)

Load Movement: Power Tilt, 90 degrees between upright and flat

Time for 90 Degree Tilt: 6.5 seconds (approx.)

Tilt Duty: 81 Tilts Per Hour

Standard Features:
Removable Control Pendant
Green Lift Light
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter

Available Options:
  • Vacuum Loss Warning Buzzer CAT. NO. E03VLW
  • Individual Vacuum pad Shutoffs CAT. NO. CM1C0WB
  • Voltage Adaptation CAT. NO. E06VA
