CRL 16 Port Cutting Table Air Flotation Unit - 230V
Roll over image to zoom in Click on image to zoom
CRL 16 Port Cutting Table Air Flotation Unit - 230V

CRL 16 Port Cutting Table Air Flotation Unit - 230V

CRLSKU: 2402563
Price:
$8,401.98
 More payment options

Description

  • 16 Chamber, 3PH/50-60HZ/230V AC
  • Powerful 3 HP Motor
  • Retrofit Any Standard Cutting Table

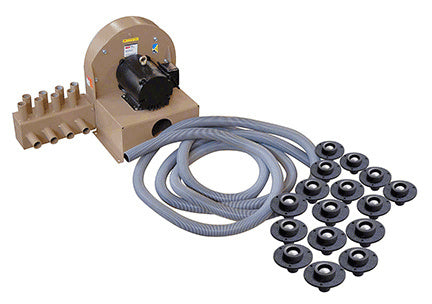

CRL Air Flotation Kits improve your cutting table capabilities and relieve the strain of moving large or thick sheets of glass. Easy-to-install, these Kits allow one man to float, move, and turn glass on the table top. This Kit features a self-contained 3 HP (2.2kw) blower unit with multi-hose manifolds feeding 16 check ball air chambers. Air chambers need to be installed evenly around the table top, and each chamber requires a 2-1/2" (64 mm) hole to be drilled in the wood. Includes mounting hardware and screws for attaching the chambers. Wiring and control device not included.

For Larger Tables or the cutting of heavy plate glass choose this 3 HP (2.2kw), 230 Volt, 16 chamber option. This Kit will operate on 60 hertz and 50 hertz electrical supplies. A Frequency Inverter type control is needed when operating at 3 Phase/50 Hertz/230 Volt AC Power. Instructions are included.

For standard 8' x 10' (2.4 x 3.1 m) tables and regular cutting choose the 1 HP 120 Volt, 12 chamber option (Cat. No. 2402562). The 120 volt kit only operates on 1 phase, 60 hertz power.

Product Warning:

Motor control (supplied by customer, 2402560 or equivalent) should be installed by trained personnel only.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
