CRL .125" Tremco® VISIONstrip® Glazing Seal
Roll over image to zoom in Click on image to zoom
CRL .125" Tremco® VISIONstrip® Glazing Seal

CRL .125" Tremco® VISIONstrip® Glazing Seal

CRLSKU: 733T74
Finish: Black
Quantity: Pack of 11
Price:
$789.14
 More payment options

Description

  • Clean Gasket Appearance with Positive Wet-Seal
  • EPDM Rubber and 100% Cross-Linked Butyl

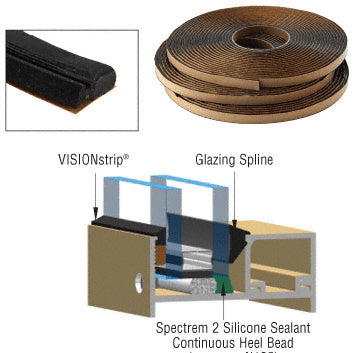

CRL Tremco® VISIONstrip® is a precision extruded glazing medium consisting of an EPDM rubber extrusion positioned at the sightline with a 100% solids, highly adhesive and elastic, cross-linked butyl preformed sealant bonded below. A single component profile achieving a positive wet-seal between the metal and glass surfaces while providing a clean gasket appearance at the sightline.

VISIONstrip® is used in compression glazing systems wherever the design calls for high performance glazing of curtain wall, unitized curtain walls, punched and ribbon window systems and sloped glazing applications. VISIONstrip® needs to be installed on a special metal nib, .050" x .060" (1.3 x 1.5 mm). NOTE: A mock-up is recommended by Tremco® to verify acceptable mating between both VISIONstrip® and metal nib.

Product Warning:

Not for use in joints subjected to continuous water immersion or temperatures exceeding 200°F (93°C).

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Specifications

Brand Tremco
Finish/Color Black
Thickness 1/8 in. (3 mm)
Type Butyl

Specifications

Specifications visionstrip.pdf
